Conventional Variable Frequency Parking Lot Security Gates With Foaming Round Arm

Basic Information
Place of Origin: Shenzhen,China
Brand Name: WEJOIN
Certification: CE,ISO
Model Number: WJDZ801P
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton,wooden box
Delivery Time: 1-20 days
Payment Terms: T/T,Western Union
Supply Ability: 5000 units/weeke
Detail Information
Motor: Die Casting Aluminum Alloy Speed: 1.5,3s,6s
Material: Steel Power: 80w
Standard Color: Gold,Silver,Orange,Onyx Black-Jacinth,Dark Yellow Delivery: 3~5 Working Days After Payment Received
Voltage: AC220V; AC110V
High Light:

automatic barrier gate system

,

electric barrier gate


Product Description

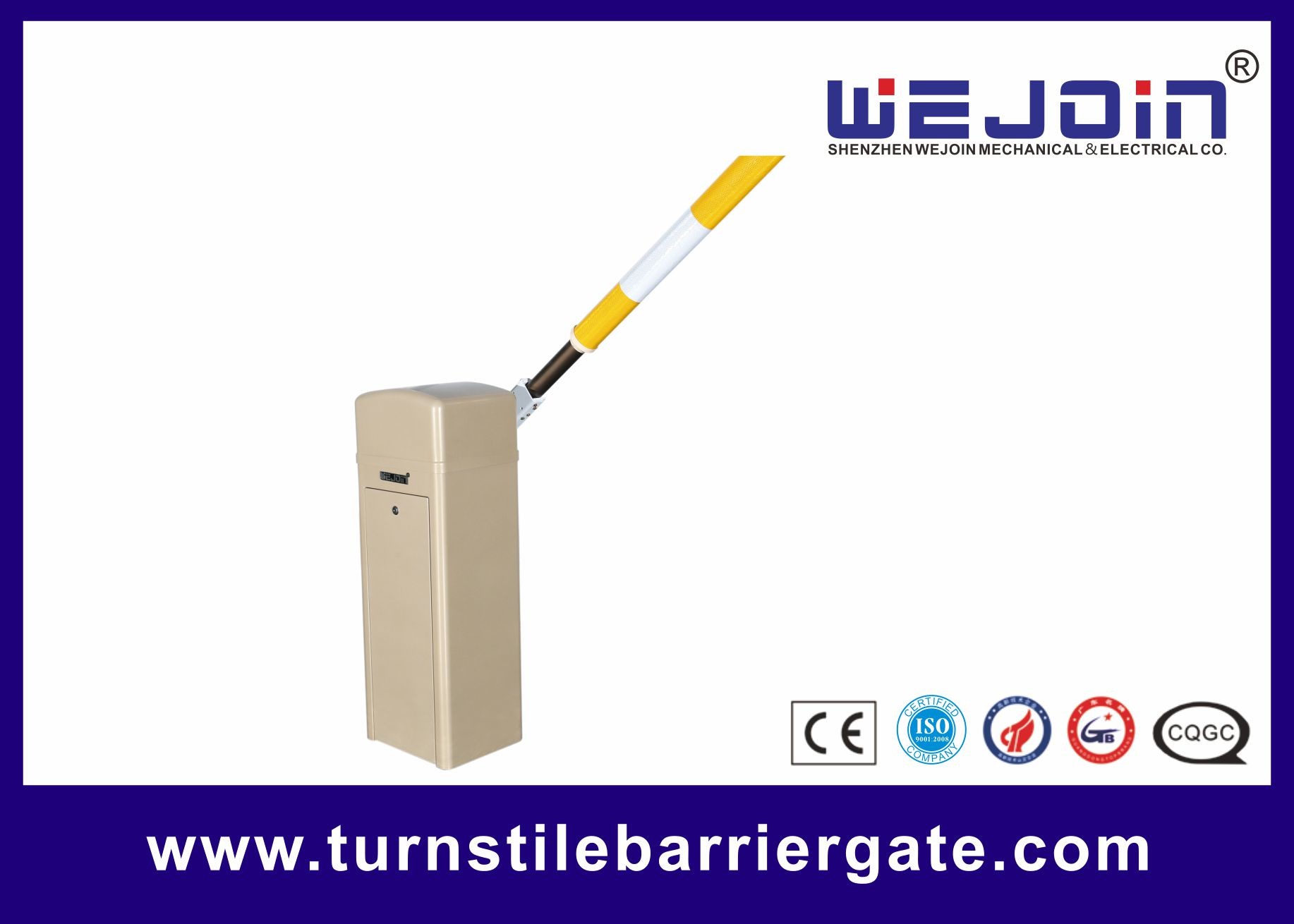

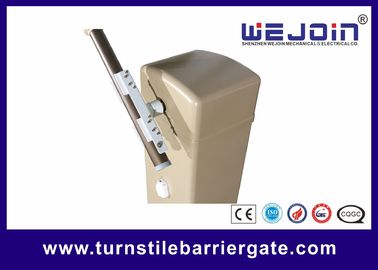

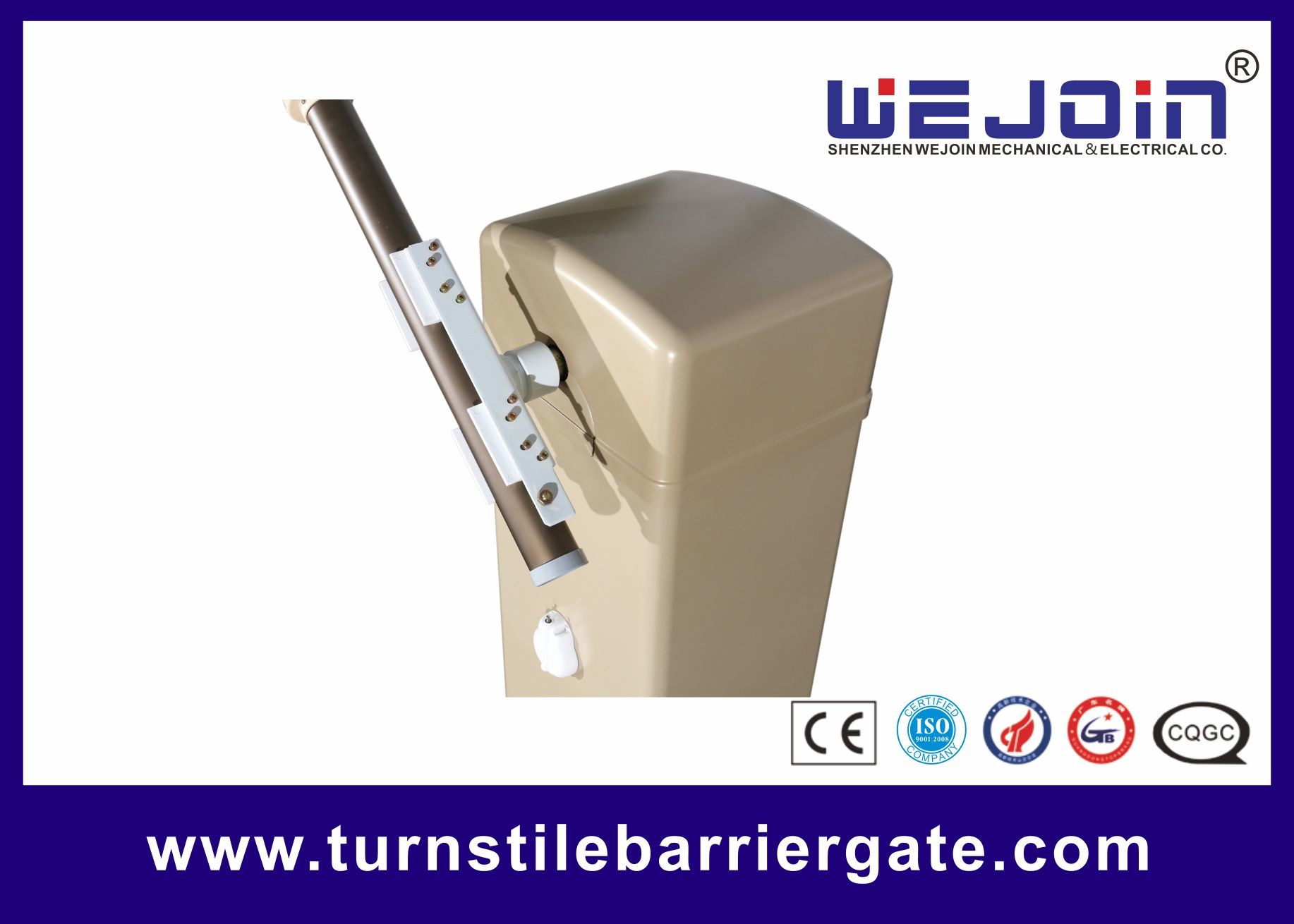

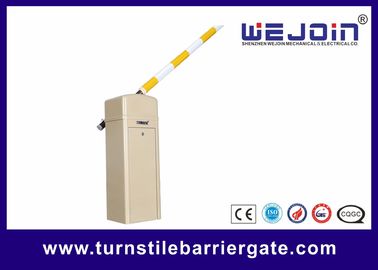

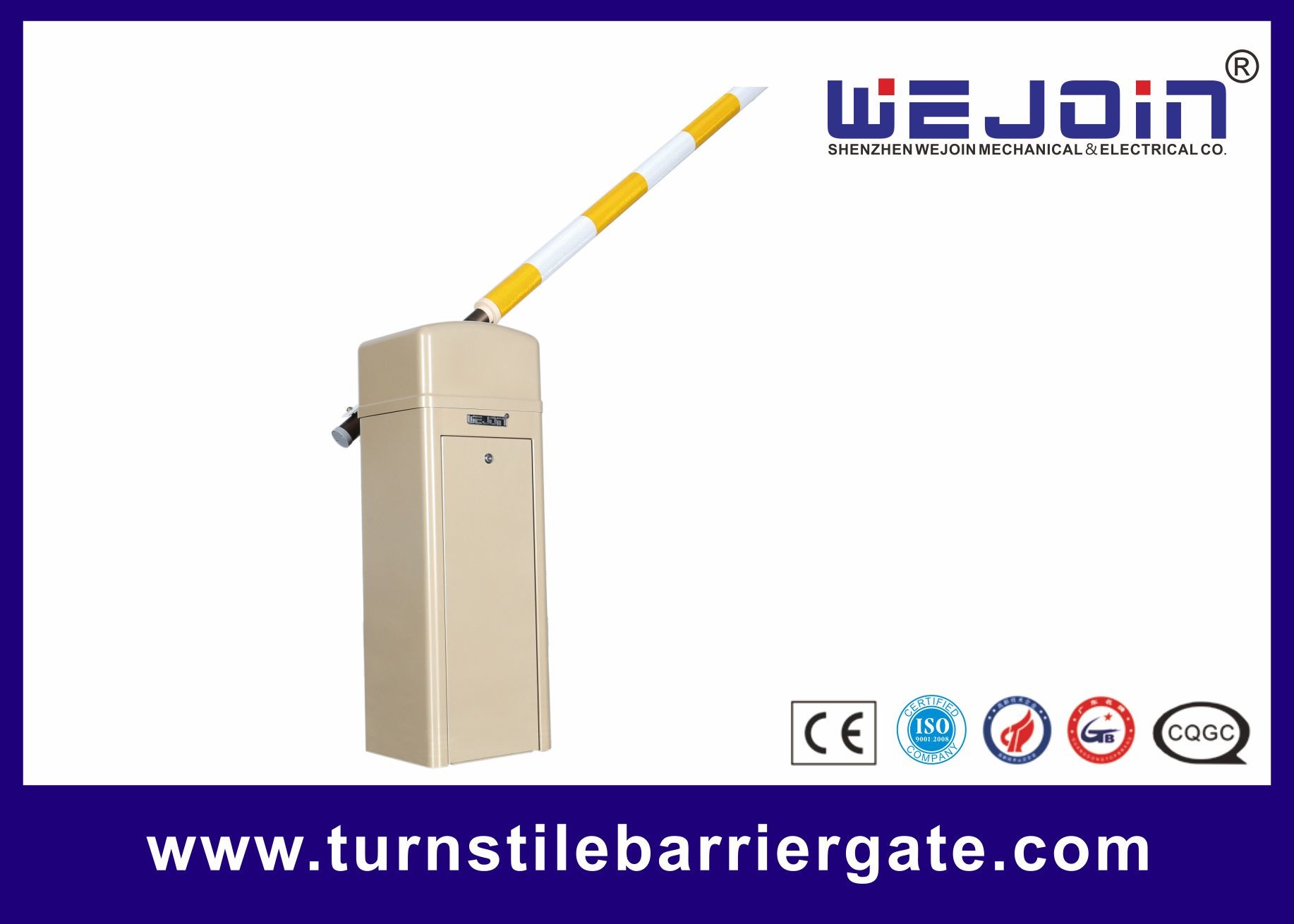

Conventional Variable Frequency Parking Lot Security Gates With Foaming Round Arm





Quick Detail:



  1. Name: Bi-direction Conventional Variable Frequency Barrier Gate
  2. Application: Parking system
  3. Speed:1.5~4s adjustable
  4. Feature: Digital Limit
  5. Rated Power:80W
  6. Certificate:CE, ISO
  7. Net Weight:50KG
  8. Voltage:AC220V, AC110V

Description:





Product feature



1.New deceleration device,using CNC comprehensive precision process;reducing notice,preventing oil spills,better working,more convenient maintenance.

2.Swing crank uses cast steel,working life can be 3.5 million times during normal maintenance.Daily working times(non-stop)can be 3000.

3.The motor well adapts to high and low temperature(-35℃~85℃).

4.New digital limit technology,free adjusting,precise control;Buffer and slow down when arem goes to limit position,working is more stably.

5.Menu type control panel,operatiing and maintenance is more convenient.

6. Speed is adjustable form 1.5s to 4s bye every 0.5s,open/close speed can be different,easier for ordering and stock.





Specifications





Model WJDZ801P
Working Temperature -35℃~+85℃
Voltage 220V±10%, 110V±10%, 50/60HZ
Rated power 300W
Relative humidity ≤90%
Remote control distance ≥30m
Net weight 50kgs
Speed 1.5~4s adjustable
Insulation grade F





Why to choose WEJOIN 110/220v Barrier Gate ?





1. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles

2. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.

3. Barrier Gate adopts the latest mold casting design, without clutch device. Its machine core adopts connecting rod structure mainly comprised with worm wheel, worm and crank arm. The barrier gate runs stably, and is conveniently maintained.

4. Barrier Gate uses the third generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.





Communication with customers





Q: There is no reaction on the motor when pressing the remote controller buttons,why?

A:(1)Please check whether the power is supplied to the barrier gate orr not

   (2)Please check whether the fuse id burnt out or not

   (3)Please check whether the code both in the remote controller and the control board are accordant or not



Q: What's WEJOIN monthly production capacity for barrier gate?

A: 3000 units.



Q: Sometimes, Why the barrier boom would open automatically?

A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.



Q: What’s the remote control distance?

A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.
