| Place of Origin: | Shenzhen,China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE, ISO |
| Model Number: | WJDZ104 |
| Minimum Order Quantity: | 1set |
| Price: | negotiation |
| Packaging Details: | Carton packages |
| Delivery Time: | 3-15 days depending on the quantity |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 set per month |
| Housing Color: | Can Be Customized | Housing Dimension: | 405*335*1050mm |
|---|---|---|---|
| 20ft Container: | 100set | Arm Type: | Round Arm,octagonal Arm Are Optional |
| Max Arm Length: | 3m | MTBF: | 8,000,000 Times |
| High Light: | car parking barriers,car park barrier systems |
||

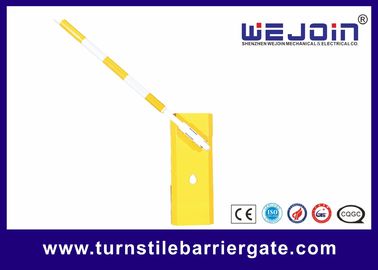

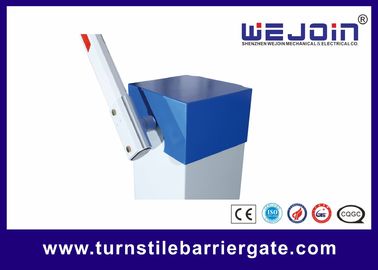

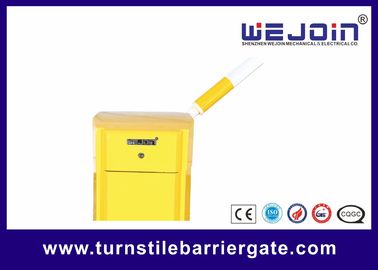

0.6s Barrier for Effective Toll Processing For Toll Applications
Quick Detail:
| Name | Toll Gate | Application | Toll application |
| Speed | 0.6s | Feature | Manual release |
| Rated Power | 300W | Certificate | CE, ISO |
| Net Weight | 50KG | Voltage | AC220V, AC110V |
Functions & Features:
1. Cabinet can be customized.
2. Round arm and octagonal arm are optional.
3. AC based motor is stronger and maintenance free,with electromagnet brake.
4. Manual release when power on.
5. Reversing on obstacle.
6. Support infrared photocell and loop detector for security.
7. Connect with computer by RS485.
8. Coveninent clutch device and manual hand wheel, user-friendly for power off.
9. Digital limit for limit adjustment-free.
10.Swing-away flange in the case of a collision with a vehicle, the barrier arm is released and can be manually re-engaged afterwards.
11.Toll barrier from Wejoin is the proper solution for all toll applications thanks to their fast speed, reliability and low operating costs.
Communication with customers
Q: What's WEJOIN monthly production capacity for barrier gate?
A: 5000 units.
Q: As for the over-heating problem of barrier gate
A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.
Q: Sometimes, Why the barrier boom would open automatically?
A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.
Q: What’s the remote control distance?
A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.
