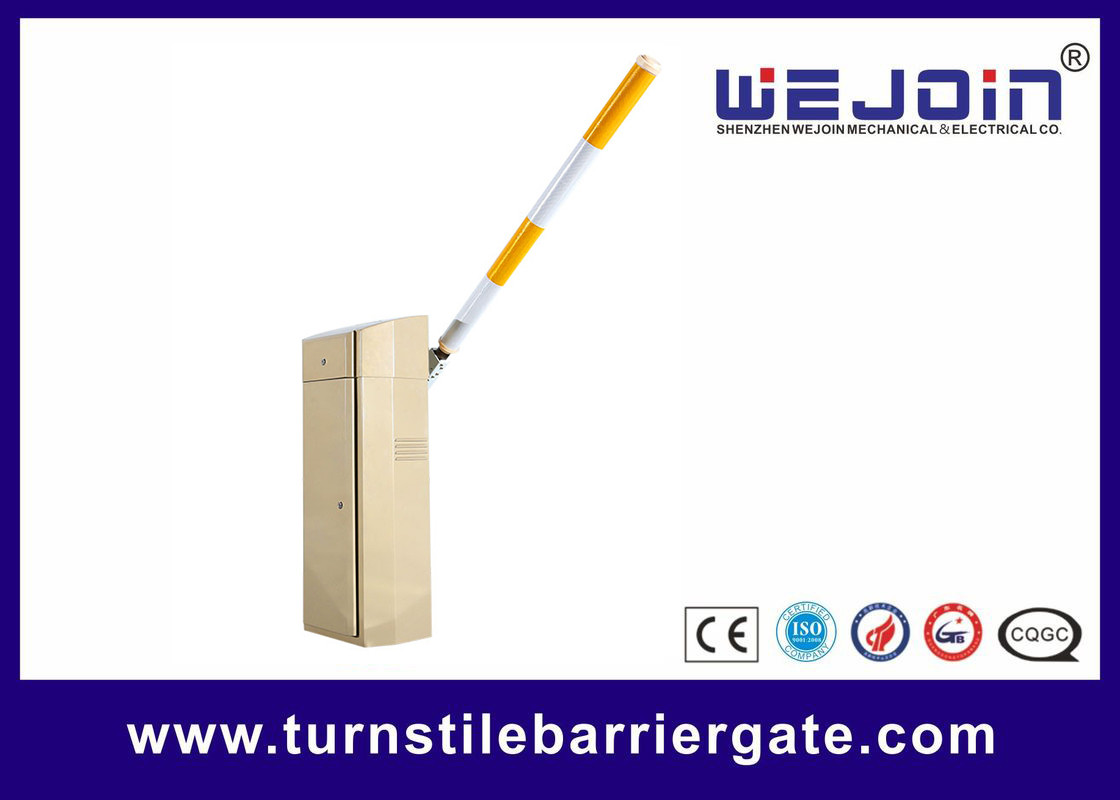

Automatic Parking Vehicle Barrier Gate Fence Boom With LCD Display Controller

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: WJCB01
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: carton
Delivery Time: 12 working days after payment received
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Detail Information
Housing Color: Gold,Sliver,Onyx Black,Dark Yellow,Jacinth Boom Type: Fence Boom
Optional Boom: Big Octagonal Boom,swing Boom,Fence Boom,Square Boom,Fording Boom Optional Accessories: Loop Detector,Infrared Photocell,Circuit Breaker,Adujstable Arm Support,Press Wave,Anti-collision Rubber
High Light:

traffic barrier gate

,

parking lot barrier


Product Description



Vehicle Barrier Gate Quick Detail:



1.DC permanent magnet synchronous motor(PMSM),servo control.
2.Superior performance,equivalent to the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency, less heat and low noise.
3.Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4.Electronic clutch design: more convenient to unclck or lock the motor when power off.(patented technology)
5. Three tension spring crank transmission design, for more stable and reliable structure.(patented technology)
6.No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7.More sensitive and reacting faster when reversing on obstacles.
8.With counting, delay auto-closing, auto-aging test, alarm when lifting boom without permission, motorcade passing function.
9.LCD display controller, more humanized operation and setting.
10.NO/NC wire control signal input are optional.
11.Integrated RS485 communcation, RJ45 network, infrared photocell, loop detector interface, radar module and more secondary development.





Vehicle Barrier Gate Features:



Input Voltage AC 220V±10%, AC110V
Motor Voltage DC310V
Enclosure Rating IP54
Working Temperature -35°C~+85°C
MTBF 10000000 times
Duty Cycle 100%
Traffic Flow Application 24 hours uninterrupted operation
Max Motor Power 300W
Max Motor Speed 90r/min
Max Torque 480N.m





Technical data:



Model WJCB02E WJCB02H WJCB02I
Running Speed 0.4S~0.9s 0.9s~5s 5s 5s 5s 5s 3s~5s 5s 5s 5s 5s
Boom Type Straight Straight 90° Folding 180° Folding 2 Fence 3 Fence Straight 90° Floding 180° Folding 2 Fence 3 Fence
Max Boom Length 2m~3.5m 3.5m~6m 5m 4m 4.5m 4m 4.5m~8m 6m 5m 6m 5m





Vehicle Barrier Gate Applications:

  • station
  • highway toll gate
  • high-grade residential area
  • commercial parking lots
  • enterprises and institutions
  • Commercial Plaza



WEJOIN's Main Advantages



  1. Global leading company for barrier gate
  2. Master of core technology and innovation
  3. Intelligent quality manufacturing process and automatic flexible production
  4. Global advanced manufacturing process and testing equipment
  5. Servo,variable frequency,double speed,bi-direction motor and other leading technique
  6. High speed and low speed coexist in motor
  7. Intergral service network covering fist-tier and second-tier cities,and more under construction service network



FAQ



Q1: What is your main products?

A: Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.

Q2: Are you manufacturer? Do you provide ODM / OEM service?

A: Yes, we are manufacturer. WEJOIN provide professional cudtomized serice for global clients.

Q3: I would like to ask if this is with RFID card reader and controller?

A: Yes, there is a controller, our barrier gate can connect with RFID card reader.

Q4: What boom types of your barrier gate?

A: We have 1s with 3m barrier arm, 3s with 4.5m barrier arm, 6s with 6m barrier arm ,etc

Q5: What is your MOQ?

A: Any quantity is acceptable.

Q6: How much is 1 set ? Can provide product details? How fast and how much it would cost to ship this item?

A: Please Click here and send your inquiry, then we will send you the price and details in time.

Q7: How about payment option?

A: 30% by T/T, 70% by T/T before delivery.

Q8: Do you have a model that can be used outdoors without further shelter?

A: Yes, It can be used outdoor without shelter. But product life will be longer with shelter.

Q9: How much warranty time do you have?

A: Whithin one years, if any problems, we will offer the accessories.

Q10: Do you use wechat? Can we plaese talk on wechat? or whatsapp?

A: Yes,my wechat ID FZ15002051250, my phone number/whatsapp is +86 15002051250, my skype ID wejoin09.



Optional Accessories

Automatic Parking Vehicle Barrier Gate Fence Boom With LCD Display Controller 0

Housing dimension

Automatic Parking Vehicle Barrier Gate Fence Boom With LCD Display Controller 1

Powerful commerical Variable Frequency Controller

Automatic Parking Vehicle Barrier Gate Fence Boom With LCD Display Controller 2
