3s - 5s Running Speed Parking Barrier Gate DC Servo Motor High Reliability

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: G20
Minimum Order Quantity: 1 set
Price: negociate
Packaging Details: carton
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Detail Information
Motor Material: Aluminum Alloy Operating Time: 0.4S~0.9s
Boom Type: Round Boom Color: White
Application: For Enterprises And Institutions Warranty: 1 Year
High Light:

auto barrier gate system


car park barriers

Product Description

3s~5s running speed car parking barrier arm gate DC servo motor


WEJOIN Commercial Servo Barrier Gate WJCB02

Fastest running speed can be 0.4 second (model WJCB02E, 0.4~0.9s adjustable), 100% duty cycle and free-maintenance make the barrier be proper for toll station and parking system!


Brief Introduction
This is our newly-produced DC servo barrier gate, which utilizes the updated electronic control technology and machinery processing technology, no limit switch design, to realize non-adjust of mechanism, adjustable speed, automatic speed reduction, ext. In this way, make the barrier operate more steadily and more reliably. This product is highlighted in frequency applications and longer lifetime.


Parking Barrier Gate Technical Data:



Running Speed






Boom Type


90° Floding

180° Folding

2 Fence

3 Fence

Max Boom Length






Input Voltage

AC 220V±10%, AC110V

Motor Voltage


Enclosure Rating


Working Temperature



10000000 times

Duty Cycle


Traffic Flow Application

24 hours uninterrupted operation

Max Motor Power


Max Motor Speed


Max Torque



Parking Barrier Gate Features:

1. DC permanent magnet synchronous motor(PMSM),servo control.

2. Superior performance,equivalent to the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency, less heat and low noise.

3. Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.

4. Electronic clutch design: more convenient to unclck or lock the motor when power off.(patented technology)

5. Three tension spring crank transmission design, for more stable and reliable structure.(patented technology)

6. No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.

7. More sensitive and reacting faster when reversing on obstacles.

8. With counting, delay auto-closing, auto-aging test, alarm when lifting boom without permission, motorcade passing function.

9. LCD display controller, more humanized operation and setting.

10. NO/NC wire control signal input are optional.

11. Integrated RS485 communcation, RJ45 network, infrared photocell, loop detector interface, radar module and more secondary development.

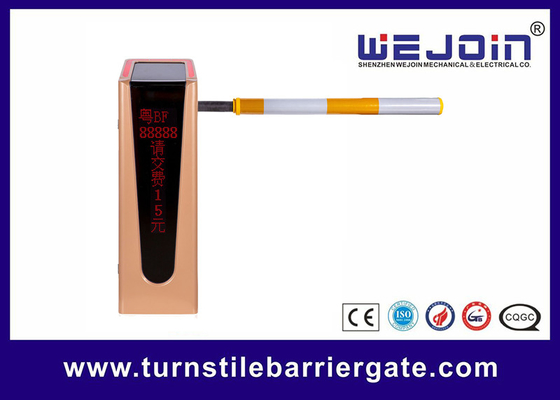

3s - 5s Running Speed Parking Barrier Gate DC Servo Motor High Reliability 0
