| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE ISO SGS |
| Model Number: | G20 |
| Minimum Order Quantity: | 1 set |
| Price: | negociate |
| Packaging Details: | carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 sets/month |
| Motor Material: | Aluminum Alloy | Boom Type: | Round Boom |
|---|---|---|---|
| Color: | White | Application: | For Enterprises And Institutions |
| Warranty: | 1 Year | Boom Length: | Max.8m |
| High Light: | auto barrier gate system,car park barriers |
||

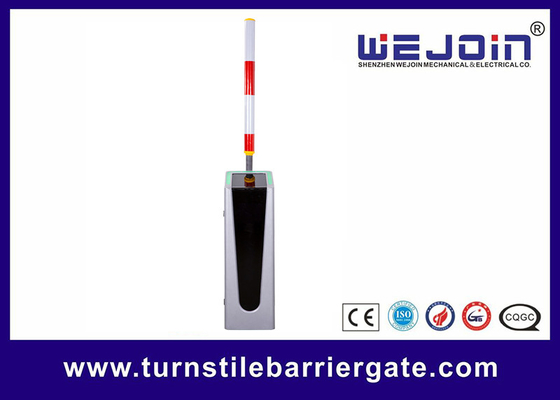

8m Max Boom Length car parking lot barrier gates automatic entrance
Brief Introduction
This is our newly-produced DC servo barrier gate, which utilizes the updated electronic control technology and machinery processing technology, no limit switch design, to realize non-adjust of mechanism, adjustable speed, automatic speed reduction, ext. In this way, make the barrier operate more steadily and more reliably. This product is highlighted in frequency applications and longer lifetime.
Parking Barrier Gate Applications
station
highway toll gate
high-grade residential area
commercial parking lots
enterprises and institutions
commercial Plaza
CB02I Series Boom Length and Speed Selection
|
Boom Type |
Straight Boom |
|||
|
Boom Length |
≤3M |
≤4.5M |
≤6M |
≤8M |
|
Passing Speed |
2.3S |
3S |
3S |
3S |
|
Running Speed |
3.8S |
5S |
5S |
5S |
Technical Data
Input Voltage:AC 220V±10%, AC110V%,50/60HZ
Motor Voltage:DC310V
Enclosure Rating: IP54
Working Temperature: -35°C~+85°C
MTBF:10000000 times
Duty Cycle:100%
Traffic Flow Application:24 hours uninterrupted operation
Max Motor Power:300W
Max Motor Speed:90r/min
Max Torque: 480N.m
Functions & Features
1.DC permanent magnet synchronous motor(PMSM),servo control.
2.Superior performance,equivalent to the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency, less heat and low noise.
3.Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4.Electronic clutch design: more convenient to unclck or lock the motor when power off.(patented technology)
5. Three tension spring crank transmission design, for more stable and reliable structure.(patented technology)
6.No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
