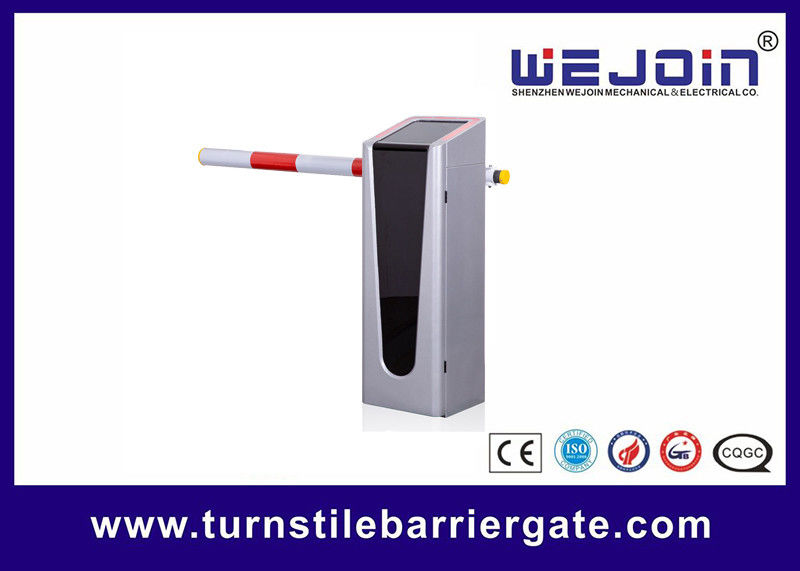

Automatic parking barrier arm gate for parking lots 3m carbon fiber
Parking Barrier Gate Basic Features:
1. By-security. The barrier gate will automatically go back when meet obstacles during closing.
2. DC permanent magnet synchronous motor(PMSM),servo control.
3. Barrier Beam/arm can be chosen from 2 meters to 6 meters, and barrier gate
4. closing time is also arranged from 0.9 second to 5 seconds.
5. The barrier gate can be both right-installed and left-installed.
6. All the operation process is soft without any noise and shaking.
7. Infrared photocell interface, Loop detector interface and IC system
8. interface are reserved for the other functions.
9. Green light and red light are used inside for indication the position of the beam.
Product parameter:
1 |
Beam length: <=6m |
2 |
Opening (Closing) time: 0.9-5S |
3 |
Machine core working temperature: -40 degrees to +75 degrees |
4 |
Electric working temperature: -20 degrees to +75 degrees |
5 |
Rated voltage: AC 220V (10%) 50Hz/60Hz, 110V (10%) 50Hz/60Hz |
6 |
Rated power: 300W |
7 |
Relative humidity: <=90% |
8 |
Remote control distance: >=30m |
9 |
Net weight: 60KG |
Running Speed and Max Boom Length:
CB02E: 0.5-0.9s, max boom length: 3m carbon fiber round boom
CB02H: 0.9-5s, max boom length: 6m straight boom, 4.5m two-fence boom, 4m three-fence boom
CB02I: 3-5s, max boom length: 8m straight boom, 6m two-fence boom, 5m three-fence boom
CB02H Series Boom Length and Speed Selection
Model |
CB02H (0.9-5S) |
||||||||
Boom Type |
Straight Boom |
90° Folding Boom |
180° Folding Boom |
2 Fence Boom |
3 Fence Boom |
||||
Boom Length |
≤3M |
≤4.5M |
≤6M |
≤3M |
≤5M |
≤3M |
≤5M |
≤4.5M |
≤4M |
Passing Speed |
≥0.9S |
1.5/2.3/3S |
3S |
2.3/3S |
3S |
2.3/3S |
3S |
3S |
3S |
Running Speed |
≥1.3S |
2.7/3.8/5S |
5S |
3.8/5S |
5S |
3.8/5S |
5S |
5S |
5S |
CB02 Commercial Servo Barrier Gate Series
Huayao G20 Commercial Servo Barrier Gate
MTBF: ≧10 million opening and closing cycles
It can be equipped with CB02E(0.5-0. 9S), CB02H(0.9-5S), and CB02I(3-5S)mechanism
Left-installation and right-installation can be exchanged
Super torque, High precise control,Three spring balance mechanism
Alarm against abnormal lifting boom
Support 24 hour continuous operation without heating protection
LCD function display controller
Electronic clutch design
Speed will reduce when boom moves to the limit position
RS485 communication, TCP/IP network port
DC12V power supply is optional
