| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE ISO SGS |
| Model Number: | WJCB02H |
| Minimum Order Quantity: | 1 set |
| Price: | negociate |
| Packaging Details: | carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 sets/month |
| Operating Time: | 0.9-5s | Boom Length: | Max.6m |
|---|---|---|---|
| Max Torque: | 480N.m | Duty Cycle: | 100% |
| Application: | Over-sized Traffic Flow Area | Material: | 304 Stainless Steel |
| High Light: | automatic car park barriers,vehicle barrier gates |
||

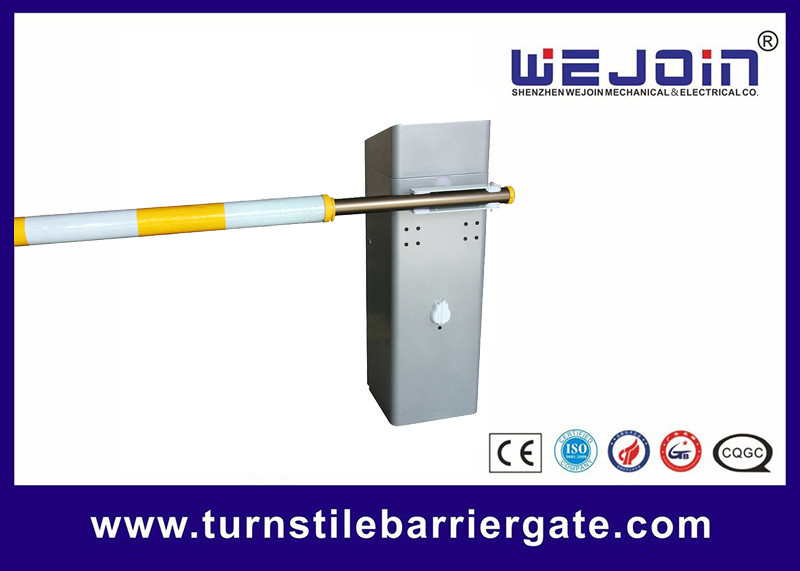

Automatic straight boom security barrier gate for parking lot
Product introduction:
Automatic Barrier Gate for Parking Lots provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle especially at apartment, for parking lots with high traffic flow such as toll gate, shopping center, exhibition center, hospitals, airports etc.
Functions and Features
1. DC permanent magnet synchronous motor(PMSM),servo control.
2. Superior performance,equivalent to the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency, less heat and low noise.
3. Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4. Electronic clutch design: more convenient to unclck or lock the motor when power off.(patented technology)
5. Three tension spring crank transmission design, for more stable and reliable structure.(patented technology)
6. No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7. More sensitive and reacting faster when reversing on obstacles.
8. With counting, delay auto-closing, auto-aging test, alarm when lifting boom without permission, motorcade passing function.
9. LCD display controller, more humanized operation and setting.
10. NO/NC wire control signal input are optional.
11. Integrated RS485 communication, RJ45 network, infrared photocell, loop detector interface, radar module and more secondary development.
Technical Data
Input Voltage:AC 220V±10%, AC110V%,50/60HZ
Motor Voltage:DC310V
Enclosure Rating: IP54
Working Temperature: -35°C~+85°C
MTBF:10000000 times
Duty Cycle:100%
Traffic Flow Application:24 hours uninterrupted operation
Max Motor Power:300W
Max Motor Speed:90r/min
Max Torque: 480N.m
Packing List
|
Name |
Specification |
Quantity |
Unit |
Application |
|
Screw, Nuts, Flat Pad |
M12*70 |
2 |
sets |
Fixing the boom |
|
Boom Fixing Bar |
|
1 |
pcs |
Fixing the boom |
|
Boom Holder Plastic Cover |
|
1 |
sets |
Optional |
|
Cabinet Fixing Bar |
|
2 |
pcs |
Fixing the boom |
|
Expansion Screws |
M16*150 |
4 |
sets |
Fixing the boom |
|
Support Post |
|
1 |
pcs |
Optional |
|
Radio Emitter |
|
1 |
pcs |
Optional |
|
Keys |
|
2 |
pcs |
For cabinet door |
|
Remote Controller |
|
2 |
pcs |
|
|
Manual |
|
1 |
pcs |
