Access Control Boom Parking Barrier Gate 5 Million Cycles Boom Direction Exchangeable

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: WJCB02H
Minimum Order Quantity: 1 set
Price: negociate
Packaging Details: carton
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Detail Information
Boom Length: Max.6m Anti-collision: Yes
Remote Control Distance: <50 Meters Application: Over-sized Traffic Flow Area
Color: Yellow Protection Class: IP54
High Light:

yellow IP54 parking lot arm gate


Access Control Boom car park barriers


Max.6m Boom Length Barrier Gate

Product Description

Access control boom gate parking garage gate systems 5 million cycles


Product Description

Economic road safety equipment barrier gate for entrance and exit security is very important for an automatic car parking management system and other traffic project; this equipment widely uses for block the road, manage the access of the gate for all vehicles such as car, truck, bus even motorbike. Everyday, you can easy find barrier gate at everywhere, airport, highway, commercial building, shopping mall, factory, hospital, and so on.


Packaging Details
carton or wooden case (Plywood box if required)
Housing size: length: 34cm wide:29cm height:94cm
Package size: length: 38cm wide : 33cm height: 98cm
245 set/20'container


Technical Specifications:



Boom type

straight, 90 degree folding

Max length of boom


Time for up/down


Environment temperature


Protection class


Max Motor Power


Duty Cycle



1. Open/close time: 0.9~5 sec. adjustable
2. Max. 8m straight arm with rubber bar
Max. 6m folding arm with rubber bar
Max. 6m fence arm with rubber bar
3. Inclusive of arm, 2 remoters, and "push button" which opens/closes barrier
4. Exclusive of LED light bar, boom bracket and anti-collision mechanism: need to buy extrally
5. Optional housing color: yellow (default),orange, white, red and blue
6. Easily change different boom type (straight/crank/fence) without replacing any parts
7. Boom direction is exchangeable without replacing any parts.

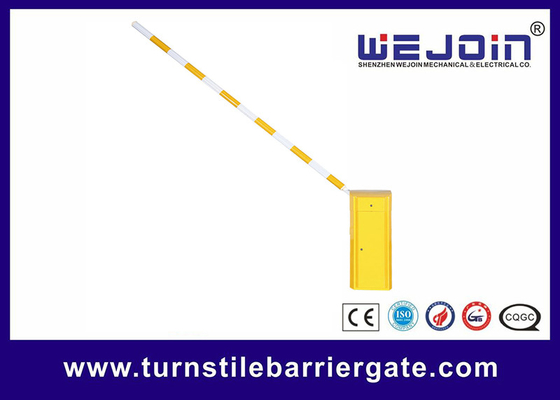

Access Control Boom Parking Barrier Gate 5 Million Cycles Boom Direction Exchangeable 0
