| Place of Origin: | Shenzhen,China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE, ISO |
| Model Number: | WJDZ830 |
| Minimum Order Quantity: | 1set |
| Price: | negotiation |
| Packaging Details: | Export Wooden Case |
| Delivery Time: | 3-15 days depending on the quantity |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1, 000 set/month |
| Housing Color: | Sliver,can Customized Color | Housing Dimension: | 1030*325*366mm |
|---|---|---|---|
| Advantage: | 1.5/3S Or 3/6S Compose Freely | 20ft Container: | 120set |
| Running Speed: | 1.5-6s | Max Boom Length: | 6m |
| High Light: | 1.5S Parking Lot Barrier Gate,Parking Lot Barrier Gate RS485,150W Car Parking Barrier Gate |
||

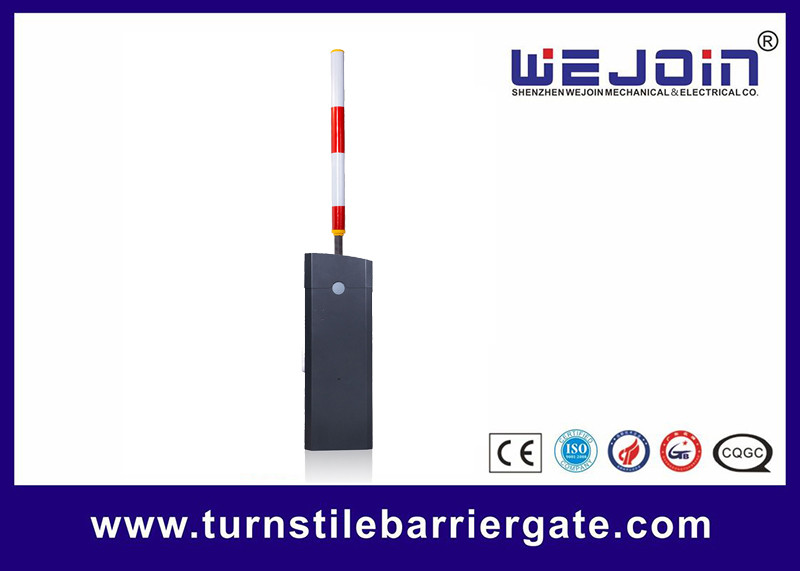

Automatic Barrier Road Boom Automatic Parking Barrier Gate
Functions & Features:
1). DC permanent magnet synchronous motor(PMSM), servo control.
2). The motor has the same performance as the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency, and low noise.
3). Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4). Manual clutch design: when power-of, turn the handwheel a little, then move the boom by hand.
5). Double tension spring crank transmission design, for a more stable and reliable structure.
6). No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7). Reversing more sensitivity and reacting faster when encountering obstacles.
8). With counting, delay auto-closing, and auto-aging test function.
9). 4-digit digital tube display more information.
10). NO/NC wire control signal input is optional.
11). Integrated RS485 communication, infrared photocell, and loop detector interface. RJ45 network, loop detector, and radar module can be added.
Technical Data:
| Working temperature (motor) | -35°C~+85°C |
| Working Power | 220V±10%,110V±10% |
| Motor Power | 150W MAX |
| Humidity | <90%RH |
| Distance of remote control | L≥30M |
| Insulation Grade | F |
