| Place of Origin: | Shenzhen,China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE, ISO |
| Model Number: | WJDZ830 |
| Minimum Order Quantity: | 1set |
| Price: | negotiation |
| Packaging Details: | Export Wooden Case |
| Delivery Time: | 3-15 days depending on the quantity |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1, 000 set/month |
| Housing Color: | Sliver,can Customized Color | Housing Dimension: | 1030*325*366mm |
|---|---|---|---|
| Advantage: | 1.5/3S Or 3/6S Compose Freely | 20ft Container: | 120set |
| Running Speed: | 1.5-6s | Max Boom Length: | 6m |
| High Light: | PMSM Parking Access Control Gate,3S Parking Access Control Gate,110V Vehicle Control Barrier Gate |
||

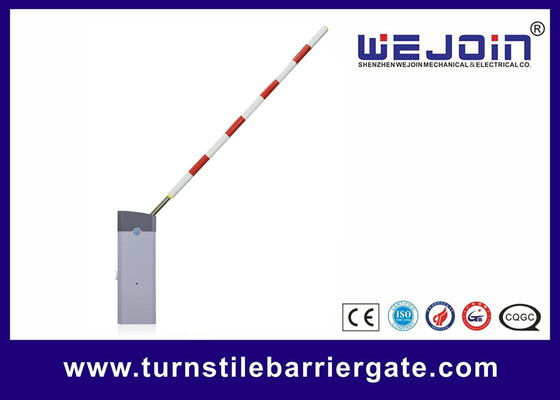

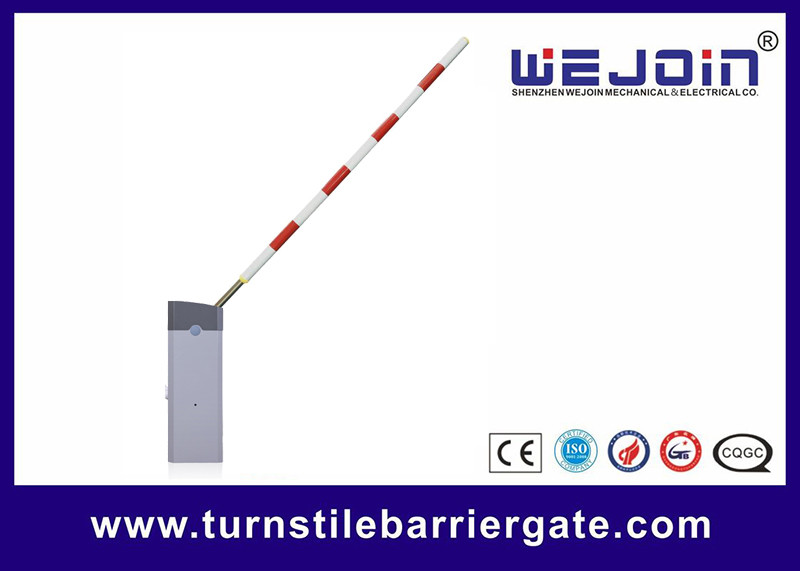

DC servo motor parking access barrier gate for vehicle entrance control management
Functions & Features:
1). DC permanent magnet synchronous motor(PMSM), servo control.
2). The motor has the same performance as the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency, and low noise.
3). Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4). Manual clutch design: when power-of, turn the handwheel a little, then move the boom by hand.
5). Double tension spring crank transmission design, for a more stable and reliable structure.
6). No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7). Reversing more sensitivity and reacting faster when encountering obstacles.
8). With counting, delay auto-closing, and auto-aging test function.
Our Services
1.Your inquiry related to our products or prices will be replied to in 12 hours.
2. Well-trained and experienced staff to answer all your inquiries in fluent English.
3. OEM&ODM, any your customized we can help you to design and put into product.
4. OEM&ODM welcome under competitive price but high quality.
5. We have our professional R&D, produce the products according to your requests.
Technical Data:
| Working temperature (motor) | -35°C~+85°C |
| Working Power | 220V±10%,110V±10% |
| Motor Power | 150W MAX |
| Humidity | <90%RH |
| Distance of remote control | L≥30M |
| Insulation Grade | F |
