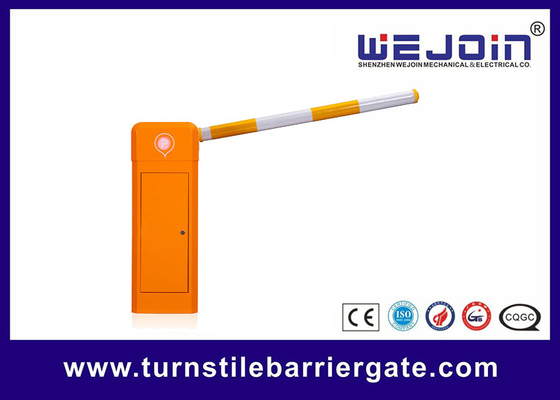

Support arm swing out automatic parking gate barrier for high traffic
Parking Barrier Description:
WEJOIN Boom Barrier is a product which WEJOIN owns independent intellectual property rights. Its boom prevents the entry of unauthorized vehicles to a restricted area and is raised by the linkage between the gate and the remote control, access control system, long-distance reader, and number plate recognition system. If a floor sensor is installed, the strike can be avoided, and the boom will be automatically lowered after the vehicle passes through the gate; otherwise, the boom can be lowered manually by using a remote controller or press button.
2. Input Voltage: 220VAC±10%, 110VAC±10%
3. Max Motor Power: 150W
4. Humidity: ≤90%
5. The distance of Remote Control: ≥30m
6. Insulation Grade: F
7. Running Speed and Max Boom Length:
CB01SV-H: 1/1.5/2S, max boom length: 4m straight boom
CB01SV-I: 3/4/5S, max boom length: 6m straight boom, 4.5m two-fence boom, 4m three-fence boom.
|
Model |
WJCB01SV-H |
|
Running Speed |
1/1.5/2S |
|
Boom-Type |
Straight |
|
Max Boom Length |
3.5M~4.5M |
1. DC permanent magnet synchronous motor (PMSM) and servo control technology.
2. The motor has the same performance as the main motor of the CNC machine and electric vehicle. It has high control precision, high torque density, good torque balance, low power consumption, high efficiency, and low noise.
3. Double extension spring crank transmission design, for a more stable and reliable structure.
4. Reasonable balance design makes less dependence on spring and easier adjustment and less maintenance.
5. No limit switch design, accurate encoder detection, detecting boom position when power on.
6. Manual clutch design: When power-off, open the manual hand-wheel clutch to move or lock the boom at any position by hand directly. (patented technology)
