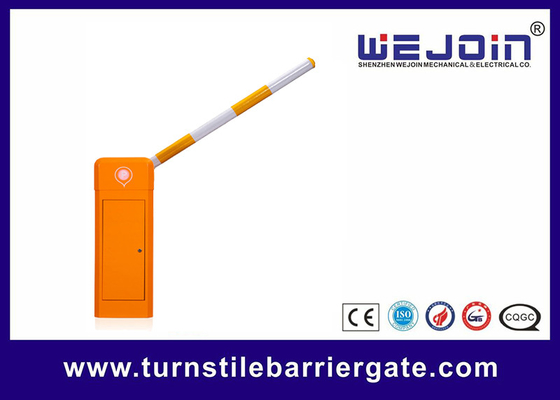

Fast opening speed and low noise automatic parking entrance barrier
Boom Barrier Brief Introduction
1. Innovative motor hand-wheel lock design: lift up the boom by hand when power off, pull the motor hand-wheel lock to lock the barrier; release the motor hand-wheel lock to run when power-on.
2. No limit switch design: the motor can detect the boom position automatically.
3. Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4. Self-detect after power-on, open/close speed is adjustable.
5. With auto-reversing on obstruction function.
6. Infrared photocell interface is available,(need to install photocell device).
7. Loop detector interface is available, to avoid hitting the vehicle, and control the boom falling down automatically after vehicle passing,(need to install loop detector)
8. Built-in counting function, can store the times of opening signal, deduct the times when vehicle passing the loop, boom falling down after vehicle passing through, well improve the traffic efficiency.
9. Built-in delay auto-closing function, coordinated with counting function, if the numbers of the vehicle passed less than the stored numbers, the boom will fall down automatically by countdown but will be new count down if there is up or loop detector signal.
CB01SV Series Boom Length and Speed Selection
Model |
CB01SV-H (1-2S) |
CB01SV-I (3-5S) |
||
Boom-Type |
Straight/Foam Round Boom |
Straight Boom |
||
Boom Length |
≤3M |
≤4M |
≤3M |
≤4.5M |
Running Speed |
1/1.5/2S |
1.5/2S |
3/4/5S |
3/4/5S |
Maintenance
1. Keep the barrier gate clean
2. Check the joints every month in case of any loose parts.
3. Check the balance status of spring after the barrier gate running 1million times; change new springs after running 3 million times, to avoid spring breaking due to excessive fatigue.
4. Check the easily worn-out parts every half year and renew them.
5. Remote control distance will be shortened or not work in cases like big object screening, battery exhausting, extreme weather.
