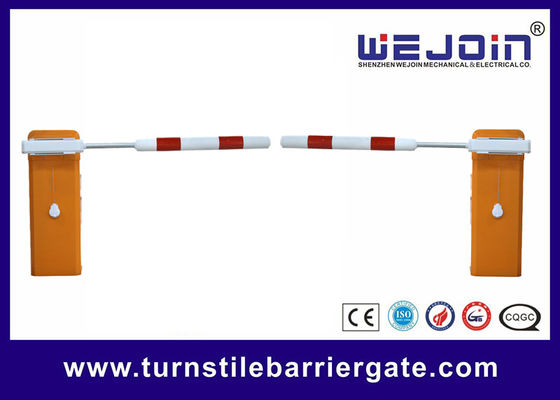

6m Straight Arm Intelligent Barrier Steel Housing RS485 COM

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE,ISO,
Model Number: WJDZ102
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton,wooden box
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 Units / Month
Detail Information
Speed: 1S; 1.8S; 3S; 6S Color: Orange
Motor Material: Die-casting Aluminum Alloy Housing Material: Steel
Max Boom Length: 8 Metes COM Interface: RS485
High Light:

6m Straight Arm Intelligent Barrier

,

Steel Housing Intelligent Barrier

,

RS485 COM Automatic Barrier Gate


Product Description

6 meters straight arm smart parking system automatic barrier gate



Parking Barrier Product Profile

place of origin: China

Brand name: WEJOIN

automatic barrier

certificate:CE, ISO

Motor :die-casting aluminum alloy



Barrier Gate Spring Installation and Adjustment

The barrier gate is well adjusted before delivery. Please do not change boom type and boom length at will. The length of springs prevails in kind, designing change without notice. Periodic maintenance of springs is required due to its wear-tear feature.

Step 1. Spring installation, disassembly, and replacement

Keep the boom at the vertical position, loosen the spring fastening nuts, unscrew the M8x140mm spring adjusting screws by a hexagonal spanner, then take off the spring.

The steps for installation and disassembling the spring are the opposite.

Step 2. Spring force adjustment

When power off, please turn the motor hand wheel to make the boom move towards the closing direction, when the boom gets close to the horizontal position if the handwheel can not be turned smoothly, which means that the spring force is small, users need to tighten the spring; and then please turn the motor hand wheel to make the boom move towards the opening direction, when the boom gets close to the vertical position, if the handwheel can not be turned smoothly, which means that the spring force is big, users need to loose the spring. Repeat the below operations and adjustment until the handwheel can be turned smoothly, which means the spring force is at balance status.



Intelligent Barrier Auto-aging Test

Sub-menu

Defaults

Range

Remarks

1 Time Interval

OFF

0-5, 0 is OFF

The time interval for the auto aging test; unit: second.

2 Boom up angle

0

0-90

Boom up angle after switching from off to on. If the value is odd, it will keep switching from off to on all the time, if the value is even, it will turn from off to on once and then completely turn off once again, and repeat continuously.
