products

Manual Release Automatic Boom Barrier Fence Folding PMSM SUS304 Folding

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE,ISO,
Model Number: WJDZ102
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton,wooden box
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 Units / Month
Detail Information
Speed: 1S; 1.8S; 3S; 6S Color: Orange
Motor Material: Die-casting Aluminum Alloy Housing Material: Steel
Max Boom Length: 8 Metes COM Interface: RS485
High Light:

Manual Release Automatic Boom Barrier

,

PMSM Automatic Boom Barrier

,

SUS304 Folding Car Parking Barrier


Product Description

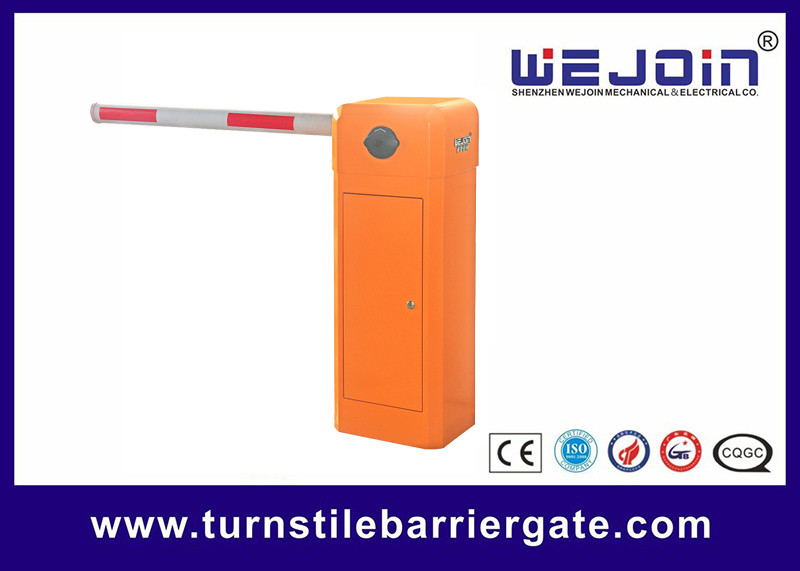

Straight/Fence/Folding Boom Gate Car Parking Barrier Automatic Boom Barrier



Parking Barrier Spring selection

Balance spring dimension 50*440mm

The Innerspring has a rubber cover and PVC tube.

The innerspring dimension is 3.0*26mm

It is innerspring if the boom length is 5.5m-6m.

There are three small compression springs inside with rubber cover to each other to make the boom is more reliable and safe as well as to reduce the fatigue of the spring. The PVC is to fix the innerspring, then install in the large spring of 6.4mm

number Boom length Spring parameter(mm) Hole position(1or 2)
1 2.5 <L<3.5 D=4.5 Hole2
2 3.5≤L≤4.0 D=5.5 Hole1
3 4.0<L<5.5 D=6.5 Hole2
4 5.5≤L≤6.0 D=6.5 Hole1



Toll Barrier Series and Data

1. DZ-1XX/A --slow speed straight boom

Boom length L≤4.5m

Operating time: 6s

Center vertical high: 0.83m

2. DZ-1XX/B--slow speed straight boom

Boom length L≤4.5m

Operating time: 3s

Center vertical high: 0.83m

3. DZ-1XX/C1— 90-degree articulating boom

Boom length L≤5m

Operating time: 6s

Center vertical high: 0.83m

4. DZ-1XX/C2— 180-degree folding boom

Boom length L≤5m

Operating time: 6s

Center vertical high: 0.83m



WEJOIN Profile

Shenzhen WEJOIN Mechanical & Electrical Co. was founded in 2004. It is the first national high-tech enterprise specialized in research and development, manufacturing, and sales of intelligent access control products in China. As one of the Brand Business Enterprises of Guangdong province, WEJOIN so far is also one of the largest manufacturers of access control and management product. Its main products include automatic barrier gates, tripod turnstiles, flap barriers, swing barriers, etc. All the products have CE certificates and have been exported to more than 100 countries or regions, such as Germany, British, Spain, Czech, France, Malaysia, India, and so on.
