| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE,ISO, |
| Model Number: | WJDZ102 |
| Minimum Order Quantity: | 1 unit |
| Price: | negotiation |
| Packaging Details: | Carton,wooden box |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 Units / Month |
| Speed: | 1S; 1.8S; 3S; 6S | Color: | Orange |
|---|---|---|---|
| Motor Material: | Die-casting Aluminum Alloy | Housing Material: | Steel |
| Max Boom Length: | 8 Metes | COM Interface: | RS485 |
| High Light: | Higher Stability Parking Barrier Gate,120W Steel Parking Barrier Gate,Die Casting Automatic Gate Barrier |
||

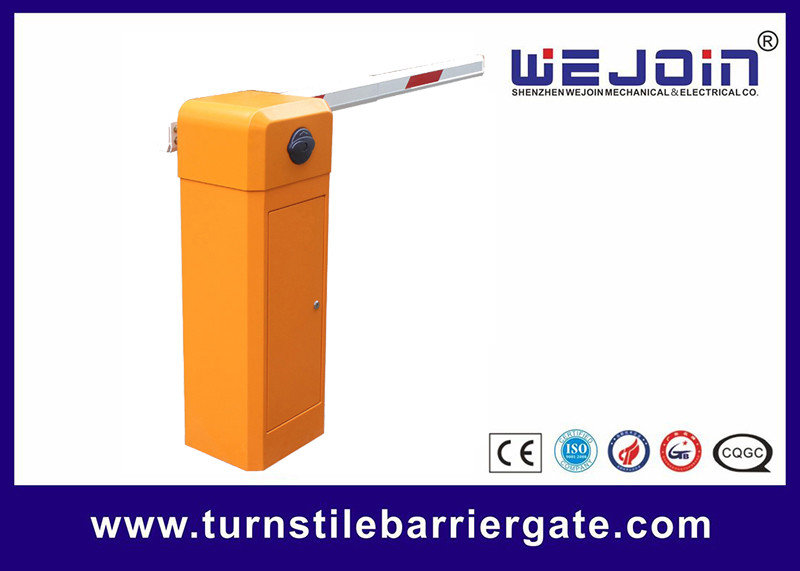

10 Million Cycles Higher Stability Automatic Parking Barrier Gate
Parking Barrier Spring selection
|
Arm type |
Arm Length |
Spring type |
|
Straight and articulated arm |
6M≥L＞5M |
5.5MM+4.5MM |
|
5M≥L≥4.5M |
5.5MM |
|
|
4.5M＞L≥3M |
4.5MM |
|
|
Fence arm |
5M≥L≥4M |
6.5MM+6.5MM |
|
4M＞L≥3M |
5.5MM65.5MM |
Toll Barrier Service Items
1. Free service is offered for component parts in one year warranty time (not including the barrier arm).
2. Lifetime service with charge accordingly.
3. Technical questions are supported.
4. The below items and situations are not included in the range of free services.
4.1. The user does not follow the instruction and case any damage to the product.
4.2. The power supply is not stable, over the range of permitted voltage, or not accordant to safety electric using standard.
4.3. The user installs or uses the product in the wrong methods, causing damage to the control system.
4.4. Natural disaster causes damage to the product.
4.5. Warranty time is over.
4.6. Service items are out of our promises.
Barrier Gate Working environment and data
1. Mechanism temperature -25℃+85℃
2. Control board temperature -20+85℃
3. Power supply 220V±10% 50/60 Hz
110V±10% 50/60 Hz
4. Rated power 120W
5. Relative humidity ≤90%
6. Remote control ≥30M
7. Net weight 60 Kg
