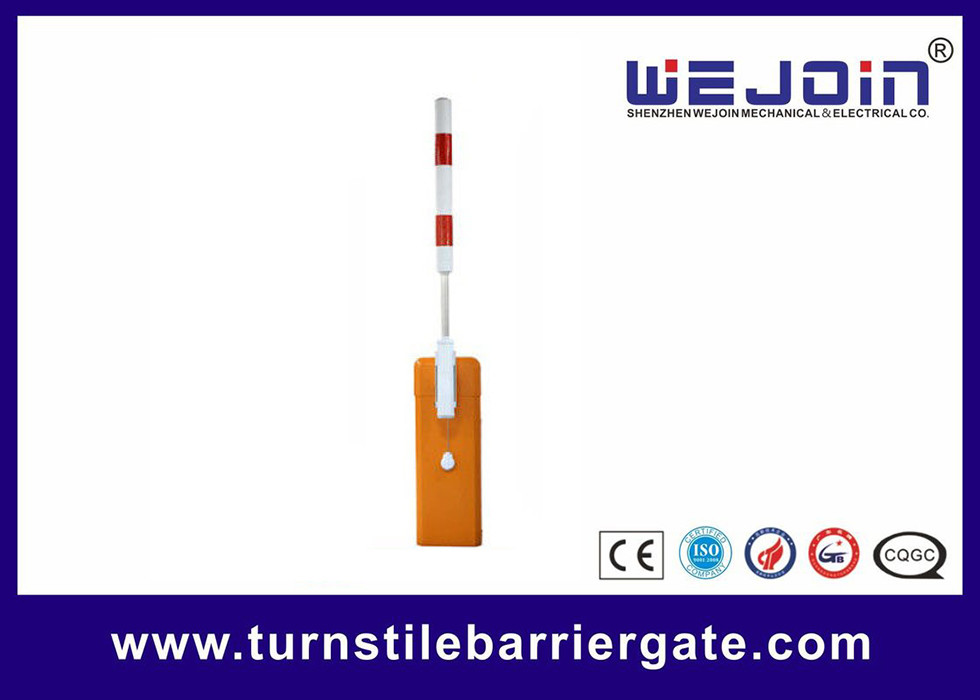

Traffic Parking Boom Barrier Gate WJDZ102 With Mannual Clutch

Basic Information
Place of Origin: Shenzhen,China
Brand Name: WEJOIN
Certification: CE,ISO,SGS
Model Number: WJDZ101
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton,wooden box
Delivery Time: 1-20 days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 units/month
Detail Information
Color: Orange/Red/yellow/grey/etc Material: 304 Stainless Steel
Warranty: 1 Year Boom Length: Max.6m
Power Supply: AC220/AC110 Arm Type: Folding,Fence,Straight
High Light:

automatic barrier gate system

,

electric barrier gate


Product Description

Parking Barrier Gate Functions:

  • Machine core with compression spring, effectively avoids the accidents caused by spring broken.
  • Die-casting aluminum alloy motor, precision and good at thermal radiating.
  • Motor cooling fan, solving the problem of heat-protection
  • Double safety limit switches(photoelectricity limit switch/ motor memory sensor)
  • reversing on obstacle
  • Auto-closing
  • Support the infrared photocell for anti-bumping(optional)
  • Support for the external and internal vehicle loop detector
  • traffic light interface
  • wire control(switch signal)/remote control(418Hz)
  • RS485 communicational module to realize the intelligent management for the passing





Parking Barrier Gate Technical Data:



Model No. (WJDZ) Open/Close Speed Max Boom Length Boom Type
102-16 6 sec 6m straight boom
102-13 3 sec 4.5m straight boom
102-118 1.8 sec 4m straight boom
102-11 1 sec 3m straight boom
102-26 6 sec 5m 90 degree,Articulated boom
102-23 3 sec 3m 90 degree,Articulated boom
102-36 6 sec 5m 180 degree,Articulated boom
102-33 3 sec 3m 180 degree,Articulated boom
102-46 6 sec 4.5m Two-level, fence boom
102-56 6 sec 4m Three-level, fence boom





Parking Barrier Gate Technical Data:



Working Temperature -35℃~+85℃
Input Voltage 220V±10%, 110V±10%
Frequency 50/60HZ
Motor Voltage AC220V/110V
Motor Power 80W
Protection grade IP54
MTBF 5000000 times





Our Services:
1. Professional and good after sale service and prompt replies will be done within 24 hours(working days).
2. Customized products will make your products stand our from others have your own style.
3. Strict quality control to ensure raw materials to final package before delivery are up to standard.
4. Professional products line meets customers' small order demands.
5. Competitive prices, high-efficiency & outstanding managements make production costs down.
6. Min order is one set, welcome to order our sample for testing and visiting our company!



FAQ



Q1: What is your main products?

A: Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.

Q2: Are you manufacturer? Do you provide ODM / OEM service?

A: Yes, we are manufacturer. WEJOIN provide professional cudtomized serice for global clients.

Q3: I would like to ask if this is with RFID card reader and controller?

A: Yes, there is a controller, our barrier gate can connect with RFID card reader.

Q4: What boom types of your barrier gate?

A: We have 1s with 3m barrier arm, 3s with 4.5m barrier arm, 6s with 6m barrier arm ,etc

Q5: What is your MOQ?

A: Any quantity is acceptable.

Q6: How much is 1 set ? Can provide product details? How fast and how much it would cost to ship this item?

A: Please send your inquiry, then we will send you the price and details in time.

Q7: How about payment option?

A: 30% by T/T, 70% by T/T before delivery.

Q8: Do you have a model that can be used outdoors without further shelter?

A: Yes, It can be used outdoor without shelter. But product life will be longer with shelter.

Q9: How much warranty time do you have?

A: Whithin one years, if any problems, we will offer the accessories.

Q10: Do you use wechat? Can we plaese talk on wechat? or whatsapp?

A: Yes,my wechat ID FZ15002051250, my phone number/whatsapp is +86 15002051250, my skype ID wejoin09.



Motor Drawing

Traffic Parking Boom Barrier Gate WJDZ102 With Mannual Clutch 0



Traffic Parking Boom Barrier Gate WJDZ102 With Mannual Clutch 1

Traffic Parking Boom Barrier Gate WJDZ102 With Mannual Clutch 2
