Traffic Electric LED Boom Barrier Gate With Double Stage Driving Motor

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE,ISO,
Model Number: WJDZ102
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton,wooden box
Delivery Time: 1-20 days
Payment Terms: T/T, Western Union
Supply Ability: 5000 units/weeke
Detail Information
Color: Red/yellow/grey/etc Product Name: Boom Barrier
Material: Stainless Steel Warranty: 1 Year
Boom Length: Max 6M (customized)
High Light:

Traffic LED Boom Barrier Gate

,

Driving Motor Boom Barrier Gate

,

RS485 traffic boom gate


Product Description

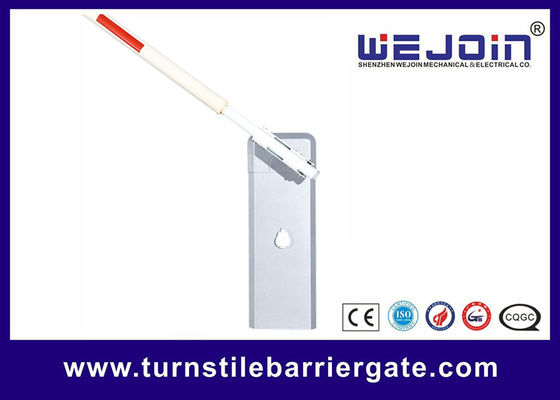

Traffic electric LED boom Barrier Gate with Double stage Driving Motor



Barrier Gate Quick Detail:

  1. Name: LED boom barrier gate

  2. Application: Parking System

  3. Speed: 3/6 second

  4. Feature: Manual release

  5. Rated Power: 80W

  6. Certificate: CE, ISO,

  7. Net Weight: 45KG

  8. Voltage: AC220V, AC110V



Parking Barrier Functions & Features:

1. Advanced manual release
2. Boom can rise and fall on left/right side by setting on the same machine
3. No need to change the balance spring when changing the booms
4. Adopts the 3rd generation WEJOIN machine core
5. Supports the infrared photocell for anti-bumping function (optional)
6. Supports the external and internal vehicle loop detector (optional)
7. Auto closing
8. RS485 communication module (optional)
9. Thermal radiates rapidly, no thermal protection
10. Die-cast aluminum alloy machine core and advanced double-stage driving motor effectively solve the problem of mechanism block up
11. Special art and craft makes out the most modernized and fashionable housing
12. Safety photo electricity limit switch

13. Boom with LED light (color is changeable with remote control)

14. Cabinet with traffic light

15. Remote Control Frequency: 315MHz, 418MHz, 433MHz



Boom Barrier Specifications

Model

WJDZ102

Working Temperature

-35℃~+75℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

80W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

45kgs

Speed

3S, 6S

Max boom length

6 meters



Traffic Electric LED Boom Barrier Gate With Double Stage Driving Motor 0
