| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE FCC |
| Model Number: | WJCB02VF-E |
| Minimum Order Quantity: | 1 PCS |
| Price: | negotiation |
| Packaging Details: | carton |
| Delivery Time: | 14 working day |
| Payment Terms: | T/T |
| Supply Ability: | 10000 sets/month |
| Barrier Arm Movement: | Bi-direction | MTBF: | 10,000,000 Times |
|---|---|---|---|
| Barrier Arm Length: | 3-4m | Material: | Powder Coated Steel |
| Barrier Arm Type: | Carbon Fiber Round Arm | Size: | 405*335*1050MM |
| Control Mode: | Remote Control | Protection Level: | IP54 |
| High Light: | 60KG Automatic Barrier Gate,Carbon Fiber Arm Automatic Barricade,3m Arm Automatic Barrier Gate |
||

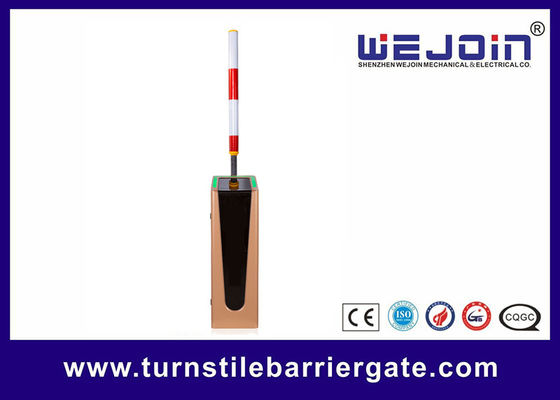

A boom barrier is mainly used for restricting unauthorized persons and vehicles from entering into otherwise controlled environments, and for controlling traffic overflow. It typically features a bar or pole type arm that raises vertically with a meter of between 3 and 4 meters. Depending on customer requirements, the arming meter can be slightly adjusted, however, the default timing of the barrier is 0.6 seconds.
This motor drive system utilizes a self-developed DC24V brushless motor, with a stable and reliable worm gear and planetary reduction transmission structure. It features a large torque and wear resistance.
It is powered by a DC variable-frequency control system which provides a precise control. This control system provides a more flexible running with less mechanical impact and it extents the overall service life.
If an obstacle blocks the road, the automatic reversing function is triggered and it provides a more sensitive, responsive, safe, and reliable result.
The large LCD screen display control panel has an English-visual menu, which is simple to maintain and easy to operate.
It also comes with a 433MHZ Remote Controller, thus it is simple to add to any existing remote controllers.
If no power is available, the handwheel or the boom can be lifted or dropped manually. It can also be powered by a DC24V battery or opened one time by a supercapacitor steam.
Additional features include Motorcade Passing, Number-Counting, Auto-Aging Test, Delay Auto-Closing, Relay Signal Output, or RS 485 Communication.
This motor drive system also has an option for Loop Detectors, Infrared Photocells, or Radar.
Our motor drive system comes with a 2 year warranty for the motor and control board.
Running Speed: This boom operates between 0.6 to 1 seconds.
Boom Type: It is made of Carbon Fiber Round.
Boom Length: The length of the boom ranges between 3 and 4 meters.
Cabinet Dimension: The cabinet is 405 * 335 * 1050MM.
Power Supply Input Voltage: For power supply, you can either use AC220V±10%, or AC110V±10%.
Control Board Input Voltage: Control board input is DC24V±10%, and it has a maximum of 10A.
Motor Voltage: Motor voltage is DC24V.
Enclosure Rating: This boom has an IP54 enclosure rating.
Working Temperature: This boom can work under -30℃~ + 70℃.
MTBF: This boom has an MTBF of 10,000,000.
Duty Cycle: There is no limit on this boom, it can work for 24 hours uninterruptedly.
Max Motor Power: This boom has a maximum motor power of 300W.
Max Motor Speed: The motor speed can reach a maximum of 500r/min.
Max Output Torque: This boom can provide a maximal output torque of 250N.m.
WEJOIN Boom Barrier ensures entrance security in a variety of locations, from factories and warehouses, to corporate offices, residential apartments, parking lots and toll plazas. Our boom barriers are designed with excellence to upgrade your security to the next level.
Our Boom barriers boast a fast speed of 0.6s, and come in a variety of lengths to ensure it can meet all installation requirements. For improved safety, our boom barriers are also equipped with a finger-proof steel segmented arm, facultative flashing lights and manual operation in case of a power failure. Plus, its smooth and quiet operations guarantees free passage.
We provide technical support and service for Automatic Barrier Gate products. Our customer service team is available to answer your questions and help you with any issues you may have. Our technicians are knowledgeable and experienced in installation and troubleshooting of Automatic Barrier Gate products.
We offer on-site technical support for Automatic Barrier Gate products, as well as remote technical support. We provide telephone, chat, and email support to help you with any issue regarding our products. Our technicians are available 24 hours a day, 7 days a week for urgent matters.
We also offer warranty services for Automatic Barrier Gate products. We have a team of certified technicians to ensure that your product is functioning properly and to provide you with reliable and timely service. We also provide software updates and upgrades for Automatic Barrier Gate products.
If you need any assistance with Automatic Barrier Gate products, please do not hesitate to contact us. Our customer service team is always available to help and answer any questions you may have.
The automatic barrier gate is packaged and shipped in a cardboard box or wooden crate. It is also wrapped in bubble wrap for extra protection. The package is labeled with the product name, model number, and barcode. The package is then secured with a shipping band and shipped via air or ground depending on the destination.
