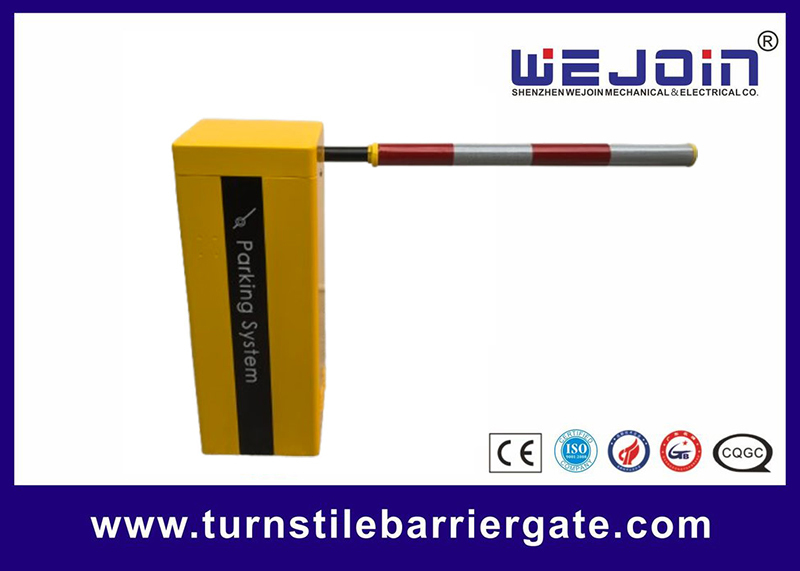

DC24V Brushless Motor Barrier Gate with Auto-Reversing

1 set
MOQ
negociate
Price
DC24V Brushless Motor Barrier Gate with Auto-Reversing
Features Gallery Product Description Request A Quote
Features
Specifications
Operating Time: 0.6s~4s
Boom Type: Straight Round Arm
Housing Material: Steel With Powder Coating
Color: Yellow
Application: Parking Lot
Warranty: 2 Year
Highlight:

DC24V brushless motor barrier gate

,

auto-reversing toll gate barrier

,

brushless motor toll gate
Basic Infomation
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: DZJ-S
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 10000 sets/month
Product Description

DC24V Brushless Motor Barrier Gate Auto-reversing on Obstruction


Boom Barrier Basic Features:

1. Motor drive, with connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life up to 6 million times or more, spring life of 1 million times.

2. All series are equipped with rebound function, when the rod is blocked in the process of falling, it will rebound automatically.

3. Support external radar, coil, infrared anti-smash function, built-in DC 12V power output, can be used for external radar power supply.

4. Support RS485 communication or RS485 off-line connection.

5. DC24V power supply is optional.



Barrier Gate Technical Data

1. Working temperature (motor): -35℃~ + 70℃

2. Power supply input voltage: AC100~265V

3. Controller input voltage: DC24V±10%, 10A

4. Motor power: 240W

5. Relative Humidity: 30%~80%, No condensation

6. Distance of remote control: open and undisturbed, L≤50M

7. Running Speed: 0.6~4 seconds adjustable

8. MTBF: 6,000,000 times



Intelligent Barrier Types:

Type

Description (Boom Length=L, Meters=M, Seconds=S)

Barrier gate with round carbon fiber boom

L≤3M, up speed 0.6S.

L≤3.5M, up speed 0.9S.

L≤4M, up speed 1.6S.

Barrier gate with round aluminum boom

L≤3M, up speed 0.9S.

L≤3.5M, up speed 1.5S.

L≤4M , up speed 2S.

L≤4.5M , up speed 3S.



Common Malfunctions and Solutions

Malfunction Phenomenon:The opening speed is fast at the first power-on

Possible Causes :The power-on self-learning speed of P-13 is too fast.

Solution:Reduce 1-XX and 2-XX of P-13.



Malfunction Phenomenon:When manually finding the limit, the barrier can’t open or close to limit position, and the buzzer alarms

Possible Causes :The power-on self-learning speed of P-13 is too slow.

Solution:Increase 1-XX and 2-XX of P-13, and try again.
