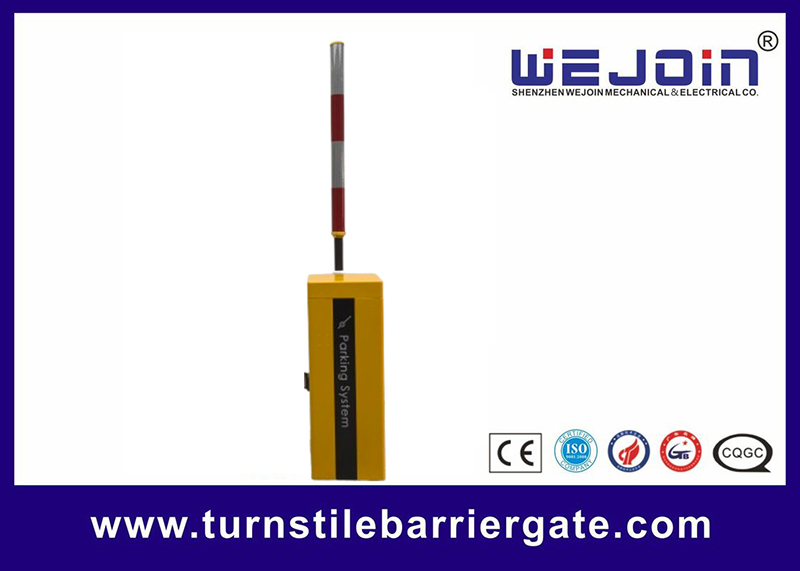

Automatic Boom Barrier Gate DC24V Brushless Motor for Parking Lots

1 set
MOQ
negociate
Price
Automatic Boom Barrier Gate DC24V Brushless Motor for Parking Lots
Features Gallery Product Description Request A Quote
Features
Specifications
Operating Time: 0.6s~4s
Boom Type: Straight Round Arm
Housing Material: Steel With Powder Coating
Color: Yellow
Application: Parking Lot
Warranty: 2 Year
Highlight:

Automatic boom barrier gate DC24V

,

Brushless motor parking lot barrier

,

Toll gate barrier with warranty
Basic Infomation
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: DZJ-S
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 10000 sets/month
Product Description

100% Duty Cycle Automatic Boom Barrier Gate DC24V Brushless Motor


Boom Barrier Basic Features:

1. This product is motor-driven, with connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life up to 6 million times or more, spring life of 1 million times.

2. The barrier gate comes standard with the rebound function, when the boom is blocked in the process of falling, it will rebound automatically.

3. Support external radar, ground sensor, infrared anti-smash function, built-in DC 12V power output, can be used for external radar power supply.

4. Support RS485 communication or RS485 off-line connection.

5. DC24V power supply is optional.



Intelligent Barrier Types:

Model

 WJCB05
Running Speed (Seconds: S) 0.6~1.5S
Boom Type Round Carbon Fiber Boom
Max Boom Length (Meters: M) 3~4M
Cabinet Dimension (W*D*H) 335*285*976MM
Power Supply Input Voltage AC100~265V
Control Board Input Voltage DC24V±10%, 10A
Motor Voltage DC24V
Enclosure Rating IP54


Common Malfunctions and Solutions

Malfunction Phenomenon:The opening speed is fast at the first power-on

Possible Causes :The power-on self-learning speed of P-13 is too fast.

Solution:Reduce 1-XX and 2-XX of P-13.



Malfunction Phenomenon:When manually finding the limit, the barrier can’t open or close to limit position, and the buzzer alarms

Possible Causes :The power-on self-learning speed of P-13 is too slow.

Solution:Increase 1-XX and 2-XX of P-13, and try again.


Automatic Boom Barrier Gate DC24V Brushless Motor for Parking Lots 0



Tag:

car parking barriers

parking barrier gates

car park barrier systems
