Home /Products/Toll Gate Barrier/Yellow Steel Boom Barrier for Parking Lots with 2-Year Warranty

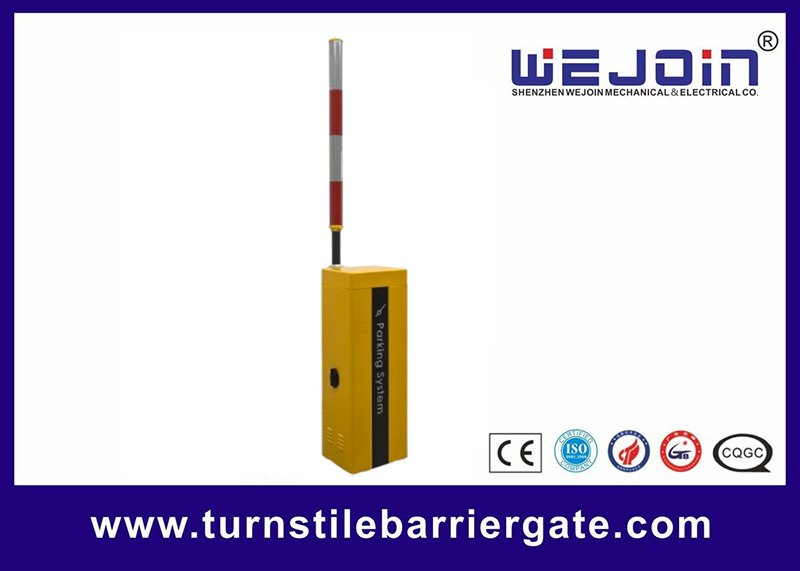

Yellow Steel Boom Barrier for Parking Lots with 2-Year Warranty

1 set
MOQ
negociate
Price
Yellow Steel Boom Barrier for Parking Lots with 2-Year Warranty
Features Gallery Product Description Request A Quote
Features
Specifications
Operating Time: 0.6s~4s
Boom Type: Straight Round Arm
Housing Material: Steel With Powder Coating
Color: Yellow
Application: Parking Lot
Warranty: 2 Year
Highlight:

yellow steel boom barrier

,

parking lot boom barrier with warranty

,

steel toll gate barrier
Basic Infomation
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: DZJ-S
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 10000 sets/month
Product Description

Intelligent and Versatile Boom Barrier for Toll Gate Barrier with Rebound Function and Adjustable Barrier Speed



Barrier Gate Common Malfunctions and Solutions

Malfunction Phenomenon:When manually finding the limit, the barrier can’t open or close to limit position, and the buzzer alarms

Possible Causes :The power-on self-learning speed of P-13 is too slow.

Solution:Increase 1-XX and 2-XX of P-13, and try again.


Malfunction Phenomenon:The controller displays IDLE

Possible Causes 1 : The motor sensor plug is not plugged in.

Solution 1: Insert the motor sensor plug well.

Possible Causes 2: Motor sensor failure.

Solution 2: Replace the motor.


Intelligent Barrier Types:

Model

 WJCB05
Running Speed (Seconds: S) 0.6~1.5S
Boom Type Round Carbon Fiber Boom
Max Boom Length (Meters: M) 3~4M
Cabinet Dimension (W*D*H) 335*285*976MM
Power Supply Input Voltage AC100~265V
Control Board Input Voltage DC24V±10%, 10A
Motor Voltage DC24V
Enclosure Rating IP54

Working Temperature

-35℃~ + 70℃

MTBF

6,000,000 times


Parking Barrier Gate Applications

Public Transportation Stations – Used in bus terminals, subway stations, and train stations to regulate vehicle access.

Highway Toll Gates – Installed at expressway entrances and exits to manage toll collection and traffic flow.

High-End Residential Communities – Ensures secure entry and exit for residents while preventing unauthorized access.

Commercial Parking Lots – Deployed in shopping malls, office buildings, and hotels to control vehicle movement and optimize space usage.

Corporate & Institutional Facilities – Implemented in government buildings, hospitals, schools, and business parks to enhance security and parking management.



Yellow Steel Boom Barrier for Parking Lots with 2-Year Warranty 0




Tag:

car parking barriers

parking barrier gates

car park barrier systems
