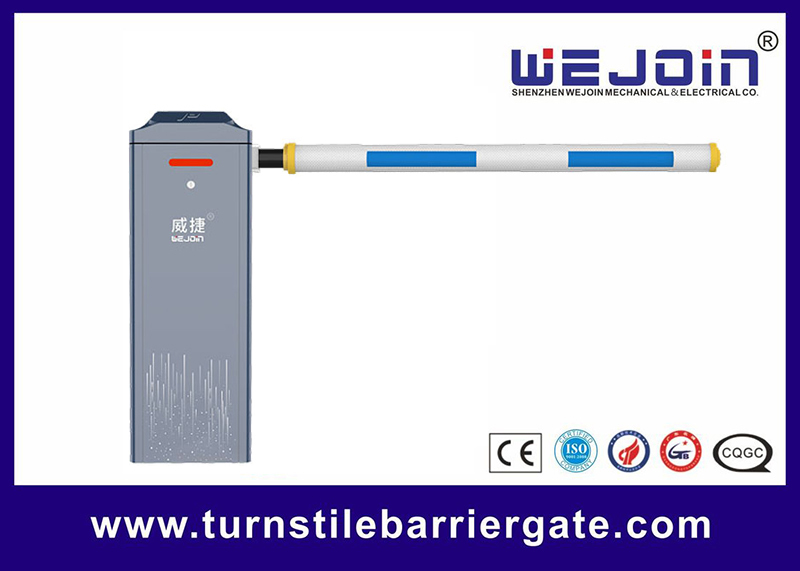

Anti-collision Swing Out Boom Barrier for Parking Lots

Parking Barrier Gate Applications

Public Transportation Stations – Used in bus terminals, subway stations, and train stations to regulate vehicle access.

Highway Toll Gates – Installed at expressway entrances and exits to manage toll collection and traffic flow.

High-End Residential Communities – Ensures secure entry and exit for residents while preventing unauthorized access.

Commercial Parking Lots – Deployed in shopping malls, office buildings, and hotels to control vehicle movement and optimize space usage.

Corporate & Institutional Facilities – Implemented in government buildings, hospitals, schools, and business parks to enhance security and parking management.

Barrier Gate Technical Data

1. Working temperature (motor): -35℃~ + 70℃

2. Power supply input voltage: AC100~265V

3. Controller input voltage: DC24V±10%, 10A

4. Motor power: 240W

5. Relative Humidity: 30%~80%, No condensation

6. Distance of remote control: open and undisturbed, L≤50M

7. Running Speed: 0.6~4 seconds adjustable

8. MTBF: 6,000,000 times
