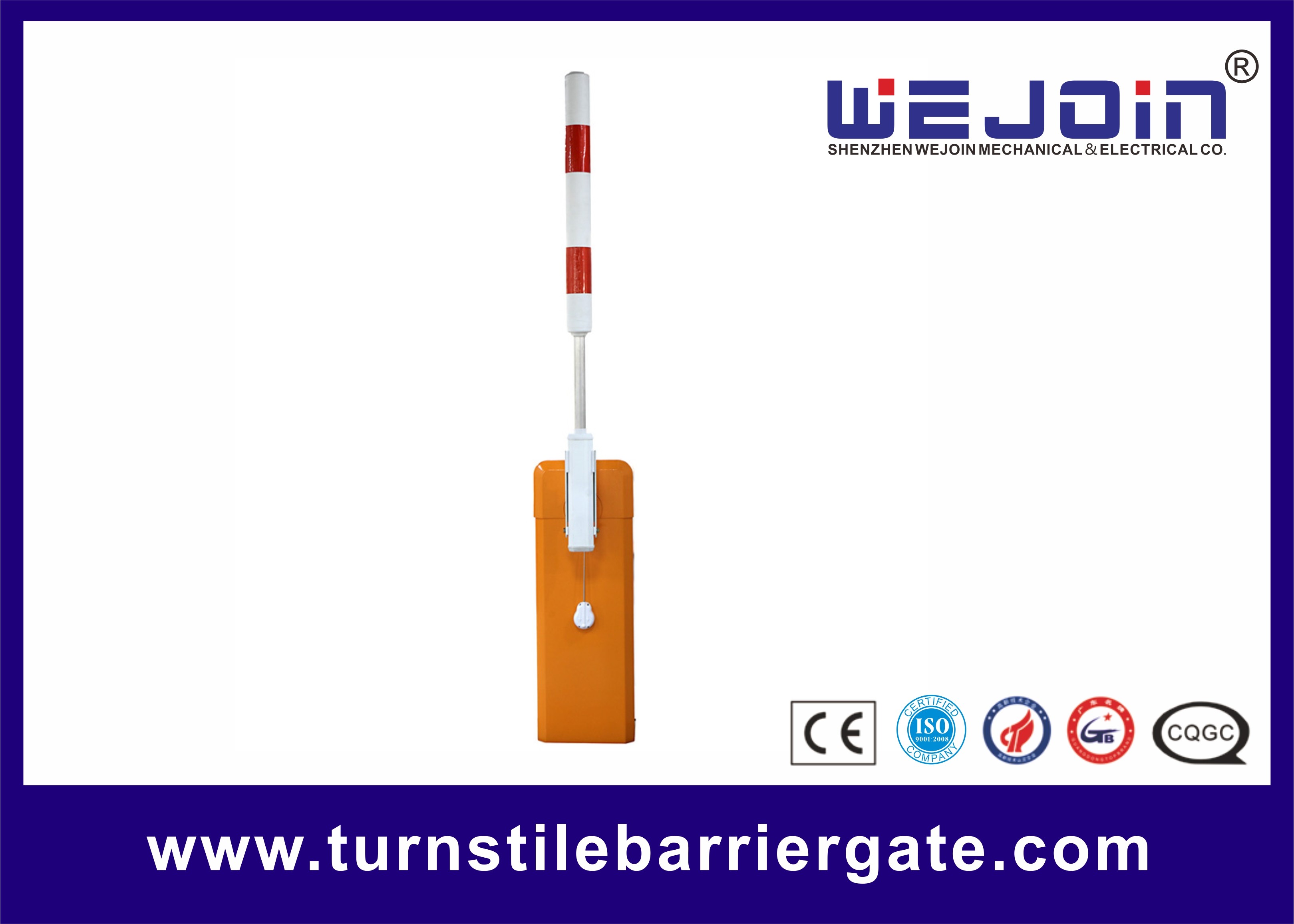

Automatic Car Park Barrier Arms Vehicle Barrier Gate for Access Control Systems

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE
Model Number: WJDZ102
Minimum Order Quantity: 1set
Price: USD
Packaging Details: Carton or Wooden
Delivery Time: 3-7days
Payment Terms: T/T, Western Union
Supply Ability: 6000/month
Detail Information
Motor Material: Die-casting Aluminum Alloy Manual Release: YES
RS485: Yes Safety Gate: Yes
Housing Finished: Powder Coated Operation Time: 1s, 1.8s, 3s,6s
High Light:

security barrier gate

,

traffic barrier gate


Product Description

Automatic Car Park Barrier Arms Vehicle Barrier Gate for Access Control Systems



Features:

  •   Manual release
  • Machine core with compression spring, effectively avoids the accidents caused by spring broken.
  • Die-casting aluminum alloy motor, precision and good at thermal radiating.
  • Motor cooling fan, solving the problem of heat-protection
  • Double safety limit switches(photoelectricity limit switch/ motor memory sensor)
  • reversing on obstacle
  • Auto-closing
  • Support the infrared photocell for anti-bumping(optional)
  • Support for the external and internal vehicle loop detector
  • traffic light interface
  • wire control(switch signal)/remote control(418Hz)
  • RS485 communicational module to realize the intelligent management for the passing



Model

Item

101-11

101-13

101-16

101-23

101-26

101-33

101-36

101-46

101-56

102-11

102-13

102-16

102-23

102-26

102-33

102-36

102-46

102-56

Running time

1sec

3 sec

6sec

3 sec

6 sec

3 sec

6sec

6 sec

6 sec

Boom type

straight

90 degree folding

180 degree folding

2 fencing

3 fencing

Max boom length

3m

4.5m

6m

3m

5m

3m

5m

4.5m

4m

Boom dimension(w*h)

40*80mm

45*100mm

Boom weight

3kg

4.5kg

6kg

6.5kg

8kg

9kg

11kg

7kg

7.5kg

Voltage

220V±10%, 110V±10%

Frequency

50/60 Hz

Motor voltage

220V

power

80W

Working temperature

-35centigrade +75centigrade



Protection grade

IP44
